Grain Storage Silos

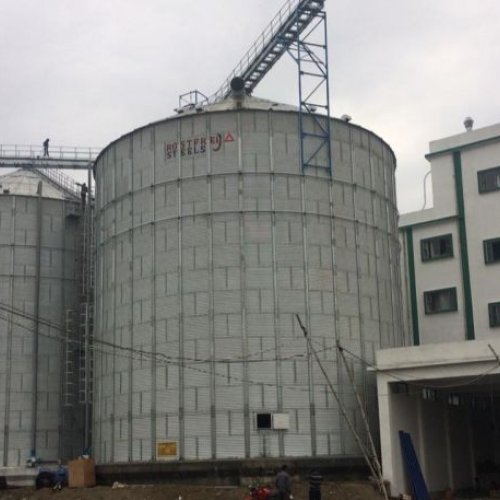

Leading Wholesaler, Exporters, Manufacturers of Flat Bottom Silos and Hopper Bottom Silos from Palwal.
| Business Type | Manufacturer, Exporter, Supplier |
| Download |  View |
| Brand | Rostfrei Steels |
| Surface | Paint Coated |
| Height | up to 12 mtr height. |
| Country of Origin | India |
| Condition | New |
| Shape | Vertical |
| Storage Material | Cement, Fly Ash, Grains. |
| Finishing | Polished |
| Tank Capacity | 25 Metric Ton to 15000 Metric Ton |
| Payment Terms | L/C, Other |
| Delivery Time | 4-6 weeks |
| Packaging Details | In Wooden Boxes |
Grain storage silos are widely used in the agricultural industry to store and preserve grains such as wheat, corn, rice, barley, oats, and soybeans. The storage needs of farmers, agricultural cooperatives, and grain processing facilities.
Rostfrei silos features
- There are two types of grain silos : Hopper bottom & flat bottom
- Hopper bottom silos range from capacities of 25 MT to 900 MT and diameter of 2.78 meters to 12.79 meters
- Flat bottom silos range from capacity of 25 Metric Ton to 15000 Metric Ton
- Our silos are designed as per standards : Ansi / Asae 2008 & ss EN1993-4-1:2011
- All our silos model go through structure stability test & design calculations have been vetted by a government authorised IIT Lab
- Rostfrei silos are designed to stand up to strong winds of 250 kmph, & in seismic zone-4
- Rostfrei silos roof are supported by rafters & supports. We give s shaped rafters with z shaped crossing to make high strength structure
- Zincalume steel of our silos are coated with specially developed passivation and resin coating as separate layers that makes it scratch resistant
- Rostfrei steels silos undergo structure stability analysis tests & all silos designs are vetted by government authorised labs
Aeration & ventilation system
Aeration, ventilation and fumigation are sized properly in rostfrei silos so that the environment inside the silo can be controlled to maintain topmost grain quality.
Purpose of aeration :
- Remove excess heat & moisture from grain
- Maintain uniform temperature in every area of grain inside the silo to stop moisture migration & hot-spot development
- Reducing fungi, insect growth & discolouration of paddy
- Removing odours from grain
- Air flow of aeration fans are selected based on silo volume and type of grain being stored
- Vents and roof exhausters are sized to 2.5 times the flow of all aeration fans put together
Anti-condensation Unit
Humidity sensors are given at the topmost Part of silos to detect humid air/ Moisture movement from the grains. Roof exhausters receive input from sensors and expel out excessive humid air out of the silo so that no condensation / Spoilage of grains occur
Fumigation system
- Most insects enter grain silos from the top and stay there within 1-2 meters for weeks. Fungi are already present in paddy at the time of harvest and grow rapidly at temperature 20 to 40 degrees and moisture more than 14%
- Fumigation is a most essential activity for safe storage of grain inside silo. Hence rostfrei silos are properly designed to carry out effective fumigation
- Rostfrei steels uses closed loop fumigation system in grain silos for effective fumigation using phosphine gas. Closed loop fumigation system consists of gas fan, upvc pipes, inlet outlet valves and electronic gas monitors.
- In process, phosphine gas concentration levels are made to reach and be maintained at 300 parts per million (PPM) For seven days (When grain is above 25°c).
- This ensures killing of grain pests at all stages of their life cycle
- Once the fumigation cycle is over, silo must be de-sealed and aeration fans must be kept running until the phosphine levels drop down to 0.3PPM
- We size the fumigation system in such a way that pressure drops are minimum and fumigation is effectively achieved with proper safety precautions as phosphine gas is explosive when its concentration reach more than 17900 PPM.
Temperature monitoring system
- Temperature monitoring cables are there to monitor temperature inside the silo.
- Each sensor is present at every 2.5 meters to monitor grain quality
- If moisture migration, discolouration, insect infestation, hot-spot occurs, temperture of that area of grain increases by 2-3 degree celcius. Operator is alerted on plc monitor screen
- This enables operator to take suitable actions on right time to save grain quality.
- Action 1: Aerate the grain for adequate time
- Action 2 : If aeration could not remove hot-spots, then fumigation of 6-7 days
Rostfrei make material handling equipments
- Sweep augers rotate 360 degrees around the base of the silo from central motor Unit to push remaining grain towards silo’s discharge gates
- Rostfrei steels manufactures durable and high quality GI 275 grade elevators and conveyors. These are equipped with all the necessary sensors and safety switches
- Rostfrei steels specialises in “inception to comissioning” of grain storage & management greenfield turnkey projects.
Timeline of project
- 5000 MT x 2 maize silo complete by 55 days
- 250 MT x 2 soyaben silos complete by 30 days
- Recieveing hoppers by 10 days
- Cleaner erection and complete arrangement done in 8-10 days
- Elevator and conveyors in 10-15 days
- Complete project erection and comissioning within 75 days
- Dispatch from the date of po issue Will be within 60 days
| Business Type | Manufacturer, Exporter, Supplier |
| Download | View |
| Brand Name | Rostfrei Steels |
| Finishing | Non Polished, Polished |
| Storage Material | Cement, Fly Ash |
| Shape | Horizontal, Vertical |
| Condition | New |
| Outer Diameter | 0-2000 Mm, 2000-4000 Mm |
| Type | Hopper Bottom Silos |
| Country of Origin | India |
| Height | 0-25 Feet, 25-50 Feet |
| Surface | Paint Coated, Powder Coated |
| Tank Capacity | 20 Metric Ton to 1000 Metric Ton |
Grain storage silos are widely used in the agricultural industry to store and preserve grains such as wheat, corn, rice, barley, oats, and soybeans. The storage needs of farmers, agricultural cooperatives, and grain processing facilities.
Rostfrei silos features
- There are two types of grain silos : Hopper bottom & flat bottom
- Hopper bottom silos range from capacities of 20 metric ton to 1000 metric ton
- Flat bottom silos range from capacity of 50 MT to 15,000 MT. Diameters ranging from 4.57 meters to 36.54 meters
- Our silos are designed as per standards : Ansi / Asae 2008 & ss EN1993-4-1:2011
- All our silos model go through structure stability test & design calculations have been vetted by a government authorised IIT Lab
- Rostfrei silos are designed to stand up to strong winds of 250 kmph, & in seismic zone-4
- Rostfrei silos roof are supported by rafters & supports. We give s shaped rafters with z shaped crossing to make high strength structure
- Zincalume steel of our silos are coated with specially developed passivation and resin coating as separate layers that makes it scratch resistant
- Rostfrei steels silos undergo structure stability analysis tests & all silos designs are vetted by government authorised labs
Aeration & ventilation system
Aeration, ventilation and fumigation are sized properly in rostfrei silos so that the environment inside the silo can be controlled to maintain topmost grain quality.
Purpose of aeration :
- Remove excess heat & moisture from grain
- Maintain uniform temperature in every area of grain inside the silo to stop moisture migration & hot-spot development
- Reducing fungi, insect growth & discolouration of paddy
- Removing odours from grain
- Air flow of aeration fans are selected based on silo volume and type of grain being stored
- Vents and roof exhausters are sized to 2.5 times the flow of all aeration fans put together
Anti-condensation Unit
Humidity sensors are given at the topmost Part of silos to detect humid air/ Moisture movement from the grains. Roof exhausters receive input from sensors and expel out excessive humid air out of the silo so that no condensation / Spoilage of grains occur
Fumigation system
- Most insects enter grain silos from the top and stay there within 1-2 meters for weeks. Fungi are already present in paddy at the time of harvest and grow rapidly at temperature 20 to 40 degrees and moisture more than 14%
- Fumigation is a most essential activity for safe storage of grain inside silo. Hence rostfrei silos are properly designed to carry out effective fumigation
- Rostfrei steels uses closed loop fumigation system in grain silos for effective fumigation using phosphine gas. Closed loop fumigation system consists of gas fan, upvc pipes, inlet outlet valves and electronic gas monitors.
- In process, phosphine gas concentration levels are made to reach and be maintained at 300 parts per million (PPM) For seven days (When grain is above 25°c).
- This ensures killing of grain pests at all stages of their life cycle
- Once the fumigation cycle is over, silo must be de-sealed and aeration fans must be kept running until the phosphine levels drop down to 0.3PPM
- We size the fumigation system in such a way that pressure drops are minimum and fumigation is effectively achieved with proper safety precautions as phosphine gas is explosive when its concentration reach more than 17900 PPM.
Temperature monitoring system
- Temperature monitoring cables are there to monitor temperature inside the silo.
- Each sensor is present at every 2.5 meters to monitor grain quality
- If moisture migration, discolouration, insect infestation, hot-spot occurs, temperture of that area of grain increases by 2-3 degree celcius. Operator is alerted on plc monitor screen
- This enables operator to take suitable actions on right time to save grain quality.
- Action 1: Aerate the grain for adequate time
- Action 2 : If aeration could not remove hot-spots, then fumigation of 6-7 days
Rostfrei make material handling equipments
- Sweep augers rotate 360 degrees around the base of the silo from central motor Unit to push remaining grain towards silo’s discharge gates
- Rostfrei steels manufactures durable and high quality GI 275 grade elevators and conveyors. These are equipped with all the necessary sensors and safety switches
- Rostfrei steels specialises in “inception to comissioning” of grain storage & management greenfield turnkey projects.
Timeline of project
- 5000 MT x 2 maize silo complete by 55 days
- 250 MT x 2 soyaben silos complete by 30 days
- Recieveing hoppers by 10 days
- Cleaner erection and complete arrangement done in 8-10 days
- Elevator and conveyors in 10-15 days
- Complete project erection and comissioning within 75 days
- Dispatch from the date of po issue Will be within 60 days
